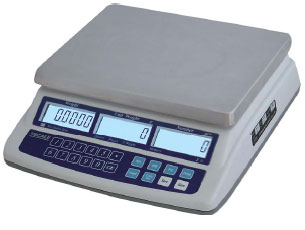

Counting Scale AHC Series - TSCALE
Counting Scale AHC Series - TSCALE Taiwan- 20mm backlight LCD display
- Function: Auto unit weight update, counting alarm
- Optional RS-232 interface, connects to computer or printer
| Model |
AHC-3
|
AHC-3Plus
|
AHC-6
|
AHC-6Plus
|
AHC-15
|
AHC-15Plus
|
AHC-30
|
AHC-30Plus
|
| Display |
20mm dight high LCD, white color LED backlight
|
|||||||
| Keyboard |
7 keys embossed membrane keyboard
|
|||||||
| Pan size |
230mmX300mm
|
|||||||
| Capacities |
3kg
|
6kg
|
15kg
|
30kg
|
||||
| Tare range |
3kg
|
1kg
|
6kg
|
6kg
|
10kg
|
10kg
|
30kg
|
30kg
|
| Operate temp |
0oC~+40oC
|
|||||||
| ADC |
sigma delta
|
|||||||
| ADC update |
≤1/10 second
|
|||||||
| Housing |
ABS plastic
|
|||||||
| Max.Divisions |
30000/60000d
|
|||||||
| Power |
AC adapter(9V/800mA) internal rechargeable battery(6V/Ah)
|
|||||||
| Gross weight |
5.1kg
|
|||||||
| Packing |
Master carton 4 in 1 Gross weight 23.5kg dimension 0.162m3, 40 feet container
can load 1320 machine, 20 feet container can load 660 machine |
|||||||
