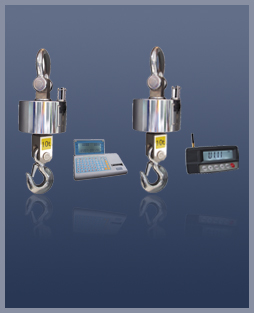

Introduction

* Capacities from 3t to 15t

* Internal resolution: 1/80,000

* Application programs include: Hold , goods name, customer name tare weight, Selectable division

* Battery provide up to 60 hours of continuous use

* Built-in mini thermal printer, support label and continuous paper

* Wireless communcation distance 50~100m(depending on the enviroment)

Specifications:

Model

TR-I

TR-II

Display 22mm LCD display, attached backlight 15mm digits high LCD display, attached LED backlight Capacity

3t / 5t / 10t / 15t

Housing

ABS

Divisions

1kg / 2kg / 5kg / 5kg

Keypad

6 keys mechanical switch

60 keys mechanical switch

Operate temp

0⁰C~+40⁰C

ADC

sigma delta

ADC update

≤0.125S

Internal counts

100,000

Power

Crane scale: rechargeable battery 6V/4Ah
Indicator: Ni-MH battery (1.2V/1200mAh×6)(TR-I)
Indicator: 100VAC to 250VAC (switching power)(TR-II)

Communication frequency

433MHz

Communication distance

50~100m(depending on the enviroment)
