Technical Specification:

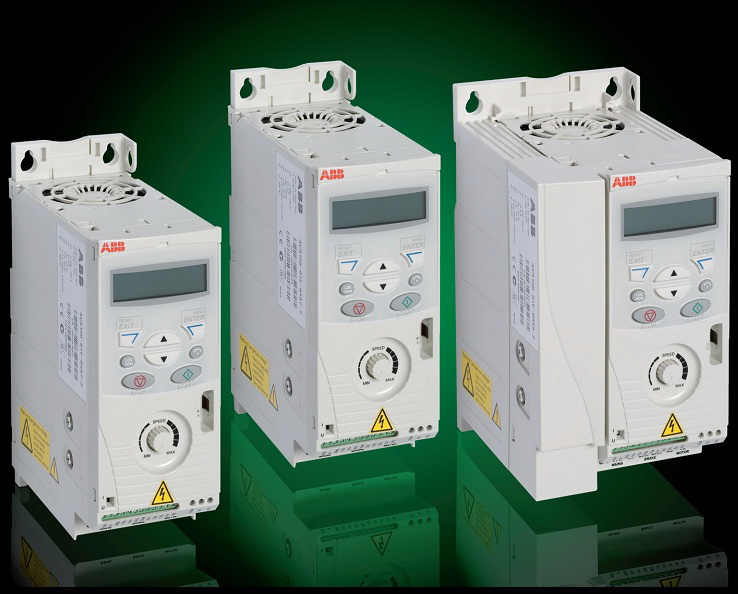

- ABB component drives are used for three phases induction motor.
- Voltage/Power range: 220V/0.37…2.2 kW, 380/0.37…4kW
- Protection class IP20, NEMA 1(option)
- Output frequency: 0-500 Hz
- Power factor: 0.98
- FlashDrop tool for faster and easier drive set up and commissioning.
- Built - in EMC filter.
- Inbuilt brake chopper as standard.
- User - friendly LCD control panel and integrated potentionmeter
- Coated boards.
- 5 digital inputs (DI) included 1 pulse train (Pule train 0…10kHz), 1 analog input (AI),1 relay output (NO+NC)
Application:
- Fans, Pumps, Gate control, Material handling, Conveyors,…
