Technical Specification:

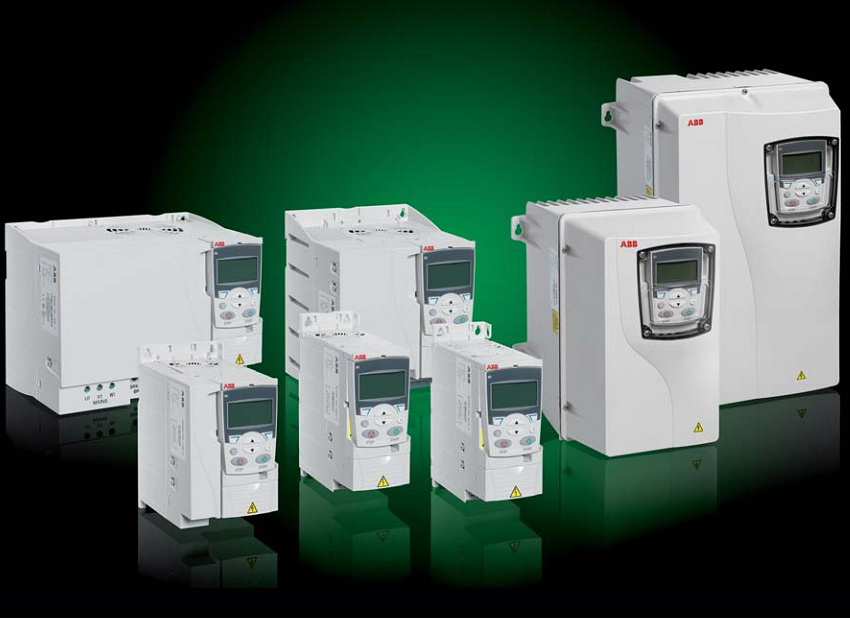

- ABB general machinery drives are designed to meet the requirements of an extensive range of machinery applications. The drives are ideal for food and beverage, material handling, textile, printing, rubber and plastics, and woodworking applications.
- Impressive software and compact hardware
- Optimized interfaces for users and machines
- Supply voltage/Power range: 220V/0.37….4kW; 380V/0.37…22kW
- Protection class IP20, NEMA 1(Option)
- Output frequency: 0-500 Hz
- Power factor 0.98
- FlashDrop tool for fast parameter setting
- Sequence Programming
- Built - in EMC filter
- Inbuilt brake chopper
- Coated boards
- 5 digital inputs (DI) included 1 pulse train (Pulse Train 0…16kHz), 2 analog inputs(AI)
- 1 relay output (NO+NC), 1 Transisstor output(10…16kHz), 1 analog output(AO)
- Protect wrong motor and cable connection
Application:
- OEM, Food and Beverage, Material handling, Textile, Printing, Rubber and Plastics, and Woodworking.
